THE VIRTUAL PRODUCTION SYSTEM SINGLE CAMERAS HAVE BEEN WAITING FOR

Pixotope is software-based, fully-integrated and runs on commodity off-the-shelf hardware.

Design, create and control LED stages of all sizes, with high quality real-time compositing and fully photorealistic rendering.

• integrated system built directly on Unreal Engine, runs on a modest HP Z4 workstation or similar

Pixotope XR and VioTrack R IR are available as Permanent or short-term licences

• flexible commercial model

  • purchase outright

  • subscribe for 12 months, 1 month or 1 week

• sold and supported by a single supplier

• option of 1 hour or 24 hour SLA

• Intel® Core™ i7/i9/Xeon 6 Core 4 GHz and up / AMD Ryzen 3900X/5800 Series

• 800 Watt Redundant Power Supply

• 1TB NVMe Main OS Drive, 2TB SSD Secondary storage Drive

• 32GB RAM

• NVIDIA® RTX 3090 GPU

• Socket 2066, Socket 2011, AMD X570 (PCI-E 4.0)

• AJA® Kona 5, AJA® Corvid 44 12G, AJA® Io 4k Plus Blackmagic Design® DeckLink Pro 8K, DeckLink SDI 4K

Pixotope is a custom build of Unreal Engine specifically designed for virtual production that runs best on a modest workstation PC.

Import existing UE assets and begin working straight away. Manufacturer-certified training is available for new users.

Pixotope offers state-of-the art single-frame tracking latency and unprecedented freedom of movement, including handheld camera operation.

Fast set up and calibration reduce on-set overhead and increase productivity.

• easy migration from existing projects to Pixotope thanks to native UE integration

• full performance of the Unreal Engine for the highest visual fidelity possible

• real time photo-realistic CGI characters and environments using Unreal Render engine

• support for all standard real-time camera tracking products and protocols

• HDR 32 bit linear colour processing and rendering environment

• UHD / 4K support

• GPU based internal video processing system for colour correction, mask adjustments, and image effects

• non-destructive internal compositing, assuring that video is not affected by graphic system anti-aliasing

• external compositing pipeline with separate outputs for garbage mattes, reflections, shadows and alpha for AR

• customisable control panels that can run on any web browser

• 8 fully configurable video inputs and outputs (with AJA Corvid 88)

• genlock / synchronise with Tri Level and blackburst inputs over SDI, to an SDI video signal or to the internal clock.

• external low latency and high accuracy API server for data integration and remote control

• timecode support with LTC timecode

• support for industry standard content generation workflows using FBX, Alembic, openEXR, etc.

• user-controllable video and tracking delay capability

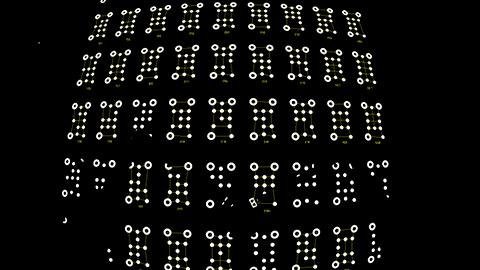

Views scenes simultaneously in visible and infra red light so that enough feature points are recognised whatever the conditions on set.

Precise camera position and orientation calculations allow the camera to move freely within 3D space, even if hand-held.

Lens data and TrackMen's zoom lens calibration technology support free zoom and focus for any type of lens and any camera motion.

A single high-resolution sensor creates the essential smooth camera tracking data.

Suitable for tripod, pedestal, dolly, jib, hand-held and Steadicam operation.

Sensor unit and lens connect to a mini Linux workstation for real-time image processing.

Camera tracking data is sent to the graphics renderers through a regular Ethernet network.

• Intel Xeon W-2135 3.7 2666MHz 8.25 6C CPU

• 32GB (4x8GB) DDR4 2666 DIMM ECC Registered Memory

• 256GB 2.5in SATA Solid State Drive

• Nvidia RTX3070 with maximum 2 slots / RTX 4000 or better

We supply and support turnkey virtual production systems. For larger installations we also provide integration and customisation services as well as finance.
